Props & Columns Clamps
UNI-1511

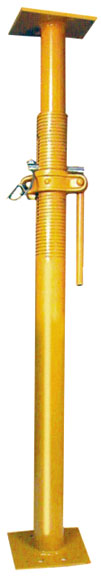

Heavy Duty Prop
Tube OD: 60 mm Tube ID: 48.3 mm
Sheet Thickness: 3.0 mm
Item Code Close Ht./Open Ht. (mtr.) Weight (kg.)
UNI-1511-A 2.00/3.50 15.300
UNI-1511-B 2.50/4.00 16.800
UNI-1511-C 3.00/4.50 18.300
UNI-1512
Light Duty Prop
Tube OD: 60 mm Tube ID: 48.3 mm
Sheet Thickness: 1.8/2.0 mm
Item Code Close Ht./Open Ht. (mtr.) Weight (kg.)
1.8 2.0
UNI-1512-A 2.00/3.50 10.400 11.000
UNI-1512-B 2.50/4.00 11.700 12.400
UNI-1512-C 3.00/4.50 13.000 14.000


UNI-1513-10F
Prop Nut - Forged
Weight: 0.450 kg.
UNI-1513-10-C
Prop Nut - Casted
Weight: 0.425 kg.


UNI-1513
Prop Sleeve
Tube OD: 60 mm
Item Code S T L Weight (kg.)
(mm) (mm) (mm) With With-out
Pin & Wire Pin & Wire
UNI-1513-A 14.0 3.6 200 1.380 1.300
UNI-1513-B 16.0 3.2 230 1.415 1.335
UNI-1513-C 18.0 3.6 250 1.485 1.405
